Dispense Control

The fuelling point control is the main component of dispense control. This control allows you to simulate dispense of fuel to the customer and adjust the fuelling point's status as desired.

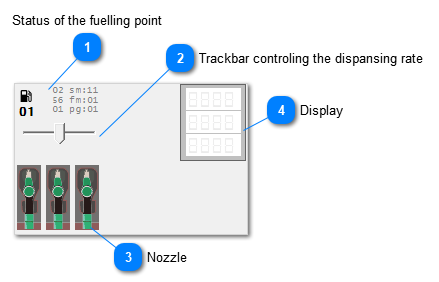

3.2.2. Dispense Control
1

Status of the fuelling point

These provide information about the current state of the fueling point and its active settings, which change during and after certain operations.
2

Trackbar controling the dispansing rate

This trackbar indicates the dispensing speed. When positioned at the far left, no dispensing occurs. At the far right, dispensing happens at the fastest rate. Users can adjust this trackbar to simulate different dispensing speeds. Please note that this setting only takes effect while fueling is authorized.
3

Nozzle

To lift the nozzle, simply click on it with the left mouse button. The nozzle will then disappear, leaving only its empty slot visible. To replace the lifted nozzle, click on the empty slot, and the nozzle will reappear in its original position.
4

Display

The display is designed to resemble a real fuel dispenser. It will also change the background color to reflect the current status of the fueling point.
