Wash Control

The wash point control is the main component of wash control. This control allows you to simulate the car wash and adjust the wash point's status as desired.

This control has two buttons that regulate the position of the car in relation to the car wash. The car may not be present, be in front or behind the car wash, or be in the correct place for washing.

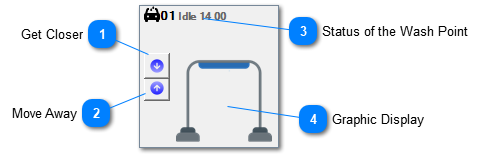

3.2.4. Wash Control
1

Get Closer

1. Get Closer
Pressing this button will bring the car closer to you. If the car is not present in the car wash pressing the button will put the car in the position in front of the car wash.
2

Move Away

2. Move Away
Pressing this button will move the car away from you. If the car is not present in the car wash pressing the button will put the car in the position in front behind car wash.
3

Status of the Wash Point

3. Status of the Wash Point
This is indicator of the current status and substate of the car wash
4

Graphic Display

4. Graphic Display
This panel represents the car position related to the car wash, as well as the current washing state.
The steps needed to make a car wash in EmuPSS are explained in a separate chapter.
